Deploy a Custom JupyterHub & Build Course Images

Teaching: 10 min · Exercises: 30 min · Total: 40 min

Questions
  • How do I deploy a JupyterHub of my own on NRP?
  • How do I give students a menu of environments and resource sizes?
  • How do I build a custom course image and keep it stable all semester?
Objectives
  • Deploy JupyterHub with Helm from a values file, on a public HTTPS hostname.
  • Add image profiles, per-profile resource limits, and shared class storage.
  • Build a custom course image with NRP GitLab CI/CD.
Open the runnable notebook

▶ Open the notebook for this section — yamls/jhub-values.yaml for this section is in the workspace.

Time: 00:50–01:30

Deploy your own JupyterHub with Helm — controlled access, custom images, per-profile resource limits, shared storage — then see how to build custom container images with NRP GitLab CI/CD. This is the recipe instructors and PIs use to stand up course and lab hubs on NRP.

Read this before you deploy a real hub

This section takes a deliberate shortcut so it fits in the time we have. Every hub you deploy after today should follow the documented path in Deploy JupyterHub, and the difference that matters is authentication.

This workshopA hub you actually run
AuthenticatorDummyAuthenticatorCILogonOAuthenticator
Who can sign inanyone who knows the shared passwordyour campus IdP, narrowed by allowed_idps / allowed_users
Prerequisitenonean OAuth client registered with CILogon
Lead timezeroplan on several days to more than a week

DummyAuthenticator is a password in a values file. It is fine for a throwaway namespace for 40 minutes; it is not acceptable for a hub with a public hostname. NRP's docs are blunt about this: leaving a hub open for anyone to sign in can get your namespace locked.

The real path uses CILogon, the same federated login NRP itself uses — your students sign in with their existing campus credentials. The catch is that CILogon is an independent service, not operated by NRP, and you register your own OAuth client with them at cilogon.org/oauth2/register:

  • Callback URL: https://<your-hostname>.nrp-nautilus.io/hub/oauth_callback
  • Client type: Confidential · Refresh tokens: No
  • Scopes: org.cilogon.userinfo,openid,profile,email

CILogon staff review each registration by hand and email you a client ID and secret once approved — budget a few days, and it can stretch past a week. Two consequences for planning a course:

  1. Start the registration well before the term. It is the long pole, and nothing on the NRP side unblocks it.
  2. Pick your hostname first. It is baked into the callback URL you register, so changing it later means going back to CILogon.

Everything else on this page — Helm, the values file, profiles, resource limits, shared storage, custom images — is identical either way. Only the hub.config authentication block changes, plus an allowed_idps allowlist for your institution. yamls/cilogon-jupyterhub-config.yaml in the workspace is a working example of that block — see 5.4 Real authentication.

Tools you need on your own machine

The training hub has all of this preinstalled, so nothing below is needed today. To run the same commands from your laptop against your own namespace, you need three tools and the cluster config:

WhatWhyWhere
kubectltalks to the Kubernetes API — every kubectl command on this pagekubernetes.io/docs/tasks/tools
kubeloginCILogon/OIDC login for kubectl. The NRP kubeconfig does not work without itgithub.com/int128/kubelogin
helminstalls and upgrades the JupyterHub charthelm.sh/docs/intro/install
Nautilus kubeconfigpoints kubectl at Nautilus and carries your CILogon identity — save it as ~/.kube/config, no extensionnrp.ai/config

kubelogin is a kubectl plugin, so the binary must land on your PATH under the name kubectl-oidc_login — that exact name is how kubectl finds it. The NRP docs give a copy-paste installer for Linux and macOS, plus fixes for headless machines, WSL, and port conflicts: cluster access via kubectl.

You also need to be an admin of the namespace you deploy into — a plain member cannot install a chart.

Setup — claim your namespace

Each participant works in their own pre-created namespace (nrp-training-000 … nrp-training-099) — JupyterHub can only be deployed once per namespace. Set your short username, render your personal manifests, and claim your namespace in one step. The claim is keyed by your hub login, so it is idempotent — you get the same slot back every time, and re-running it after a break is safe:

Bash
export NRP_USER=changeme   # ✏️ EDIT to your short name
cd ~/hidsi/workspace
if [ "$NRP_USER" = changeme ]; then echo "⚠️  Edit NRP_USER above first, then re-run"; else
  mkdir -p my-yamls
  for f in yamls/*; do sed "s/<username>/$NRP_USER/g" "$f" > "my-yamls/$(basename "$f")"; done
  echo "✅ my-yamls/ rendered for $NRP_USER"
fi
# claim your own namespace for the session (idempotent — same slot every time you ask):
export NRP_NAMESPACE=$(curl -s "http://nrp-claim.nrp-training.svc.cluster.local/claim?user=${JUPYTERHUB_USER:-$NRP_USER}")
export NRP_RELEASE=jhub-$NRP_USER
echo "namespace=$NRP_NAMESPACE release=$NRP_RELEASE"
Expected output
text
✅ my-yamls/ rendered for nautilus
namespace=nrp-training-042 release=jhub-nautilus

$NRP_NAMESPACE and $NRP_RELEASE are what the commands below (and check.sh 3) pick up — no hand-editing. Every manifest is rendered into my-yamls/ with <username> already filled in, so wherever this page says "replace <username>", it is already done in your copy.

Terminal sessions don't share these variables — run the same export lines in any terminal you open. Re-running the render overwrites edits you made in my-yamls/.

📘 Docs: Deploy JupyterHub · Build images · NRP GitLab CI · Z2JH (upstream)

1. Helm in one paragraph

Helm is a package manager for Kubernetes — instead of authoring every Deployment, Service, and ConfigMap by hand, you install a chart (a reusable bundle of templates) and tune it through a values file. The Zero to JupyterHub chart packages the entire hub/proxy/spawner stack; your whole deployment is one YAML file of values.

The values file looks long until you see what it stands in for. Your 173 lines render into thirteen Kubernetes objects, about 1,400 lines of manifests:

One values file renders into thirteen Kubernetes objects What Kubernetes actually needs — 13 objects, ~1,400 lines of YAML Deployment · hub Deployment · proxy Service · hub Service · proxy-api Service · proxy-public Ingress · jupyterhub ConfigMap · hub Secret · hub PVC · hub-db-dir ServiceAccount · hub Role · hub RoleBinding · hub NetworkPolicy · proxy Helm — the z2jh chart 45 templates, rendered and kept in sync jhub-values.yaml What you write — 173 lines, six blocks that matter

And they all have to agree with each other. The hub's Deployment carries a checksum of the ConfigMap and the Secret, so changing either restarts the hub instead of leaving it running on stale config. The ServiceAccount needs a Role granting create and delete on pods and PVCs — that is how the hub spawns a user's server. proxy-public has to route to the proxy, which has to route to the hub, which has to know its own public URL.

Hand-written, changing the single-user image means editing several files and re-checking every reference between them. With the chart it is one line in one file, and helm upgrade works out what has to change.

In the training hub, helm is preinstalled — verify, then add the chart repository:

Bash
kubectl auth whoami && helm version --short

helm repo add jupyterhub https://jupyterhub.github.io/helm-chart/
helm repo update
helm repo list
Expected output
text
"jupyterhub" has been added to your repositories
Update Complete. ⎈Happy Helming!⎈

NAME         URL
jupyterhub   https://jupyterhub.github.io/helm-chart/

2. Examine the values file

The chart brings the templates; this one file brings every decision. Read it a block at a time — the whole thing is at the end of the section.

2.1 Who can log in

YAML
hub:
  config:
    JupyterHub:
      authenticator_class: dummy
      admin_access: true
      admin_users: ["admin", "admin2"]
    DummyAuthenticator:
      password: "training123"
    # Allow all users to sign in (for tutorial purposes)
    Authenticator:
      allowed_users: set()

authenticator_class: dummy accepts any username with the shared password — which is why this is a workshop hub and not a course hub. admin_users gets the admin panel: other people's servers, the user list, a shutdown button. There are two of them so you can be two people at once later — 5.3 has you log in as both to watch a shared folder work. allowed_users: set() is an empty allowlist, and empty here means "no list — let everyone in".

That last line is the first thing to change in production. With CILogon (5.4) the allowlist stops being a formality and becomes your enrollment list.

2.2 The hub

YAML
hub:
  db:
    type: sqlite-pvc
    pvc:
      accessModes: [ReadWriteOnce]
      storage: 1Gi
      storageClassName: rook-ceph-block-east
  resources:
    limits: {cpu: "2", memory: 1Gi}
    requests: {cpu: 100m, memory: 512Mi}

The hub process keeps its state — users, running servers, API tokens — in SQLite on its own 1Gi volume, so restarting the hub does not lose who is logged in. rook-ceph-block-east is NRP block storage; ReadWriteOnce is all a single database pod needs.

2.3 The proxy

YAML
proxy:
  secretToken: 'secret_token'
  service:
    type: ClusterIP

Every request to a user's server goes through the proxy, and secretToken is the shared secret the hub uses to reprogram its routes. secret_token is a placeholder that must never reach a real deployment — the install step in section 3 mints a real one into your copy before Helm sees it.

ClusterIP keeps the proxy inside the cluster; the ingress (2.6) is what faces the internet.

2.4 The single-user servers

Abridged to the decisions you will actually change — the environment, the size, and the home directory:

YAML
singleuser:
  image:                                # the default environment
    name: quay.io/jupyter/scipy-notebook
    tag: 2024-04-22
  cpu:                                  # what every server gets
    limit: 3
    guarantee: 3
  memory:
    limit: 10G
    guarantee: 10G
  storage:                              # a private home volume per user
    type: dynamic
    capacity: 5Gi
    homeMountPath: /home/jovyan
    dynamic:
      storageClass: rook-ceph-block-east
      pvcNameTemplate: claim-{username}{servername}
  defaultUrl: "/lab"
  profileList:                          # the spawn-page menu — more in 5.1
  - display_name: Scipy
    kubespawner_override:
      image_spec: quay.io/jupyter/scipy-notebook:2024-04-22
    default: True

image is the environment a server starts in — pin the tag, never latest. cpu/memory apply to every server, and setting guarantee equal to limit reserves the resources instead of overcommitting them. storage: dynamic gives each user their own PVC, named from pvcNameTemplate and mounted at homeMountPath, so /home/jovyan survives logouts, restarts and culls. profileList is the menu on the spawn page; each entry's kubespawner_override replaces the defaults above. The file ships with fifteen profiles — one is shown here.

2.5 Culling idle servers

YAML
cull:
  enabled: true
  timeout: 3600
  every: 600

Every 10 minutes (every) the culler shuts down servers idle for more than an hour (timeout). Home volumes are untouched, so a student logs back in and picks up where they left off.

Why `cull` is not optional

A student who closes their laptop lid leaves a pod holding CPU and memory. On shared national infrastructure that is the fastest way to make your namespace unpopular — and for a class of 40, it is the difference between a hub that fits its allocation and one that does not.

2.6 The ingress

YAML
ingress:
  enabled: true
  ingressClassName: haproxy
  hosts: ["jhub-<username>.nrp-nautilus.io"]
  pathSuffix: ''
  tls:
    - hosts:
      - jhub-<username>.nrp-nautilus.io

This is what puts the hub on the public internet, and it goes in from the start — no second deploy to expose it. The hostname has to be globally unique, which is why the setup step substituted <username> for you. ingressClassName: haproxy hands routing to the cluster's HAProxy controller, and the tls block makes cert-manager request a Let's Encrypt certificate for that name — no certificate files for you to manage.

The whole file

Those are the blocks worth explaining; the rest is node affinity, image pre-pullers and scheduler settings you can leave alone. Read it end to end in the workspace at yamls/jhub-values.yaml, or on GitHub.

3. Deploy

First — what is already running in your namespace?

JupyterHub can only be deployed once per namespace: a second release fights the first over the proxy-public service and the hub database. Your claimed slot should be empty, but check before you install.

Bash
helm list -n $NRP_NAMESPACE
kubectl get pods -n $NRP_NAMESPACE
Expected output
text
NAME	NAMESPACE	REVISION	STATUS	CHART	APP VERSION
No resources found in nrp-training-042 namespace.

An empty helm list and no pods means you are clear — deploy.

If a release is listed, look at the NAME column. Tear it down only if it is yours; in a shared namespace someone else's class may be running on it.

Clear an existing JupyterHub
Bash
OLD_RELEASE=changeme   # ✏️ the NAME shown by `helm list` above

helm uninstall "$OLD_RELEASE" -n $NRP_NAMESPACE
kubectl wait --for=delete pod -l app=jupyterhub -n $NRP_NAMESPACE --timeout=120s 2>/dev/null || true
helm list -n $NRP_NAMESPACE
kubectl get pods -n $NRP_NAMESPACE

helm uninstall leaves PVCs behind on purpose — the hub database and any user home directories survive, so a reinstall picks them back up. Section 6 shows how to delete those too.

Install the chart

Bash
# mint a proxy secret token — only replaces the placeholder, so re-runs keep the same token
if grep -q "'secret_token'" my-yamls/jhub-values.yaml; then
  sed -i "s|secretToken: .*|secretToken: '$(openssl rand -hex 32)'|" my-yamls/jhub-values.yaml
fi

helm upgrade --cleanup-on-fail --install $NRP_RELEASE jupyterhub/jupyterhub \
  --namespace $NRP_NAMESPACE \
  --values my-yamls/jhub-values.yaml \
  --wait \
  --timeout=10m
Expected output
text
Release "jhub-nautilus" does not exist. Installing it now.
NAME: jhub-nautilus
NAMESPACE: nrp-training-042
STATUS: deployed
REVISION: 1
NOTES:
       You have successfully installed the official JupyterHub Helm chart!

Inspect what the chart created — every one of these is an ordinary Kubernetes object:

Bash
kubectl get pods -n $NRP_NAMESPACE
Bash
kubectl get services -n $NRP_NAMESPACE
Bash
kubectl get pvc -n $NRP_NAMESPACE
Bash
kubectl get ingress -n $NRP_NAMESPACE

You should see the hub pod (auth, sessions, spawning), the proxy pod (routing), a hub-db-dir PVC, an ingress carrying your hostname — and, once someone logs in, per-user pods and claim-<user> PVCs.

Log in

After ~a minute for HAProxy and Let's Encrypt, open https://jhub-$NRP_USER.nrp-nautilus.io, log in as admin with the Dummy password (training123), and spawn a server. admin2 is a second account on the same password — you will need it in 5.3. You now have a working multi-user JupyterHub on national research infrastructure.

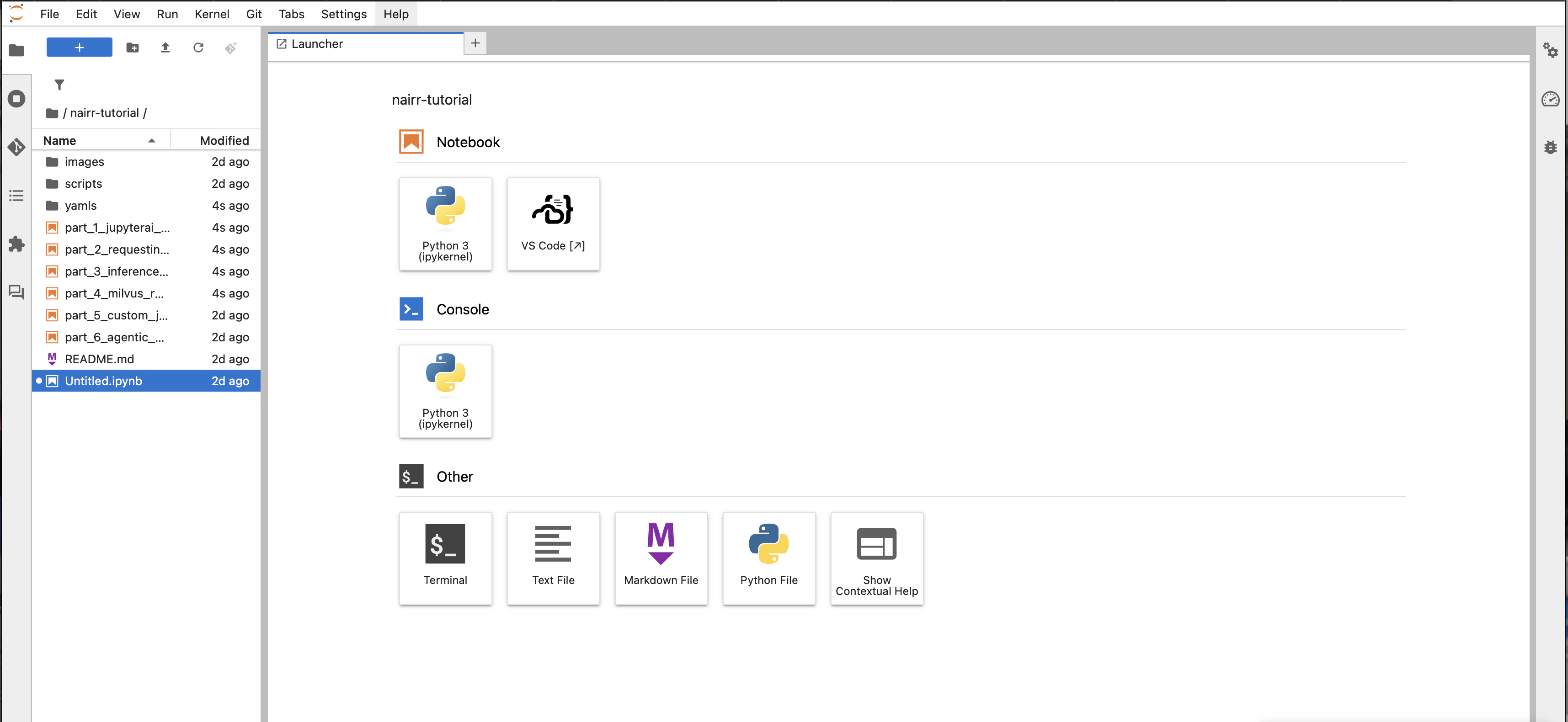

JupyterHub spawn page

4. Operating your hub

Bash
helm list -n $NRP_NAMESPACE
Bash
sleep 5
kubectl logs -n $NRP_NAMESPACE -l app=jupyterhub,component=hub --tail=50
Bash
kubectl get pods -n $NRP_NAMESPACE -l app=jupyterhub,component=singleuser-server

Troubleshooting is the standard Kubernetes trio: describe the failing pod, read namespace events, check hub/proxy logs.

Check your work at any point:

Bash
bash check.sh 3
A good place to stop

That is a complete, working, publicly reachable JupyterHub — if this is as far as you need to go today, tear it down in 6. Cleanup so the namespace is left clean.

Staying on? Section 5 turns it into your hub: an image menu, per-profile sizes, a folder the whole class shares. Nothing below is required for the hub you already have.

5. Make it yours

Your hub is running, so every change below is one you can make right now. They all follow the same pattern: write a small overlay file holding just the change, then hand Helm both files.

Bash
helm upgrade $NRP_RELEASE jupyterhub/jupyterhub \
  --namespace $NRP_NAMESPACE \
  --values my-yamls/jhub-values.yaml \
  --values my-yamls/<overlay>.yaml \
  --wait --timeout=10m
Overlays — the tool you will still be using next semester

--values can be passed as many times as you like. Helm merges the files rather than replacing one with the next, so the second file is not a replacement for the first — it is a patch on top of it:

In the base fileIn the overlayResult
cull.timeout: 3600not mentionedkept
singleuser.imagesingleuser.imagethe overlay's value wins
profileList — 15 entriesprofileList — 2 entriesreplaced, not appended

Maps merge key by key, at any depth: an overlay that sets one field inside singleuser.storage leaves the rest of singleuser alone. Lists are the exception — they replace wholesale, which is why an overlay's profileList becomes the entire menu rather than a longer one. Order matters, so the overlay goes last.

This is worth keeping past today. Your base file is the hub you agreed to run, and it stays in version control untouched; each change is a small file that reads as a diff of one decision — a GPU profile for the deep-learning unit, this term's dataset mounted, a longer cull timeout during finals week. Rolling one back is deleting a flag rather than editing YAML under pressure, and stacking several is just more --values.

When you come back to a hub months later and cannot remember what it is actually running with, ask it:

Bash
helm get values $NRP_RELEASE -n $NRP_NAMESPACE      # what you supplied
helm get values $NRP_RELEASE -n $NRP_NAMESPACE -a   # everything, chart defaults included

One thing to know before you start: each command below layers only its own overlay, so it undoes the previous experiment. Pass several --values flags to stack them.

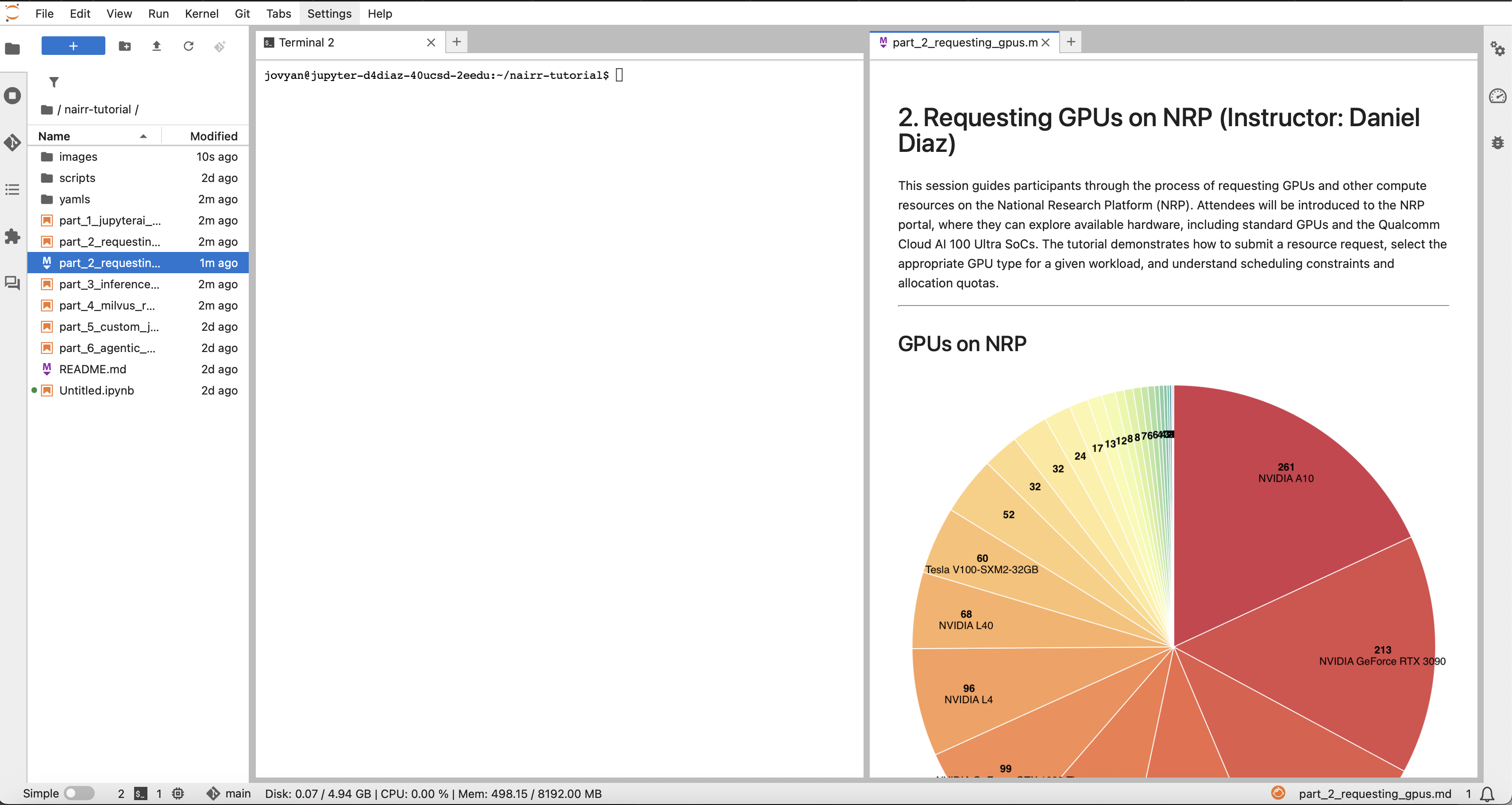

5.1 Multiple image profiles

The file already ships with fifteen profiles. Replace them with a shorter menu — this is the singleuser.profileList from 2.4:

YAML
singleuser:
  profileList:
  - display_name: Scipy
    kubespawner_override:
      image_spec: quay.io/jupyter/scipy-notebook:2024-04-22
    default: True
  - display_name: Tensorflow (CUDA)
    kubespawner_override:
      image_spec: quay.io/jupyter/tensorflow-notebook:cuda-2024-04-22
  - display_name: Pytorch (CUDA 12)
    kubespawner_override:
      image_spec: quay.io/jupyter/pytorch-notebook:cuda12-2024-04-22
  - display_name: Datascience (scipy, Julia, R)
    kubespawner_override:
      image_spec: quay.io/jupyter/datascience-notebook:2024-04-22

Try it:

Bash
cat > my-yamls/overlay-profiles.yaml <<'EOF'
singleuser:
  profileList:
  - display_name: Scipy
    kubespawner_override:
      image_spec: quay.io/jupyter/scipy-notebook:2024-04-22
    default: True
  - display_name: Tensorflow (CUDA)
    kubespawner_override:
      image_spec: quay.io/jupyter/tensorflow-notebook:cuda-2024-04-22
  - display_name: Pytorch (CUDA 12)
    kubespawner_override:
      image_spec: quay.io/jupyter/pytorch-notebook:cuda12-2024-04-22
  - display_name: Datascience (scipy, Julia, R)
    kubespawner_override:
      image_spec: quay.io/jupyter/datascience-notebook:2024-04-22
EOF

helm upgrade $NRP_RELEASE jupyterhub/jupyterhub \
  --namespace $NRP_NAMESPACE \
  --values my-yamls/jhub-values.yaml \
  --values my-yamls/overlay-profiles.yaml \
  --wait --timeout=10m

Reload the spawn page — the menu is four entries now. A server that is already running keeps its old image until you stop and restart it.

5.2 Per-profile resource limits

Each entry's kubespawner_override can set size as well as image, which is how one hub serves an intro unit and a deep-learning unit at once:

YAML
  - display_name: Small (2 CPU, 4GB RAM)
    kubespawner_override:
      image_spec: quay.io/jupyter/scipy-notebook:2024-04-22
      cpu_limit: 2
      cpu_guarantee: 2
      mem_limit: 4G
      mem_guarantee: 4G
  - display_name: Large (8 CPU, 16GB RAM)
    kubespawner_override:
      image_spec: quay.io/jupyter/scipy-notebook:2024-04-22
      cpu_limit: 8
      cpu_guarantee: 8
      mem_limit: 16G
      mem_guarantee: 16G

Try it:

Bash
cat > my-yamls/overlay-sizes.yaml <<'EOF'
singleuser:
  profileList:
  - display_name: Small (2 CPU, 4GB RAM)
    default: True
    kubespawner_override:
      image_spec: quay.io/jupyter/scipy-notebook:2024-04-22
      cpu_limit: 2
      cpu_guarantee: 2
      mem_limit: 4G
      mem_guarantee: 4G
  - display_name: Large (8 CPU, 16GB RAM)
    kubespawner_override:
      image_spec: quay.io/jupyter/scipy-notebook:2024-04-22
      cpu_limit: 8
      cpu_guarantee: 8
      mem_limit: 16G
      mem_guarantee: 16G
EOF

helm upgrade $NRP_RELEASE jupyterhub/jupyterhub \
  --namespace $NRP_NAMESPACE \
  --values my-yamls/jhub-values.yaml \
  --values my-yamls/overlay-sizes.yaml \
  --wait --timeout=10m

Reload the spawn page and pick Small — then check what the pod actually got:

Bash
kubectl get pod -n $NRP_NAMESPACE -l app=jupyterhub,component=singleuser-server \
  -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.spec.containers[0].resources}{"\n"}{end}'

A GPU profile adds extra_resource_limits: {"nvidia.com/gpu": "1"}.

JupyterHub profile menu

This is where a course gets shaped. Give the intro unit a Small CPU profile and the deep-learning unit a GPU profile, and students pick the right one from a dropdown instead of you managing machines — or fielding "how much memory should I ask for?" forty times.

5.3 Shared storage for the whole class

Mount one RWX CephFS volume into every user server:

YAML
singleuser:
  storage:
    extraVolumes:
      - name: jupyterhub-shared
        persistentVolumeClaim:
          claimName: jupyterhub-shared-volume
    extraVolumeMounts:
      - name: jupyterhub-shared
        mountPath: /home/shared

This one needs a volume to mount, so create the claim first. rook-cephfs is the RWX class — rook-ceph-block-east, which your home directories use, only attaches to one pod at a time and would fail the moment a second student spawned.

Try it:

Bash
kubectl apply -n $NRP_NAMESPACE -f - <<'EOF'
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: jupyterhub-shared-volume
spec:
  storageClassName: rook-cephfs
  accessModes: [ReadWriteMany]
  resources:
    requests:
      storage: 5Gi
EOF

kubectl get pvc jupyterhub-shared-volume -n $NRP_NAMESPACE

cat > my-yamls/overlay-shared.yaml <<'EOF'
singleuser:
  storage:
    extraVolumes:
      - name: jupyterhub-shared
        persistentVolumeClaim:
          claimName: jupyterhub-shared-volume
    extraVolumeMounts:
      - name: jupyterhub-shared
        mountPath: /home/shared
EOF

helm upgrade $NRP_RELEASE jupyterhub/jupyterhub \
  --namespace $NRP_NAMESPACE \
  --values my-yamls/jhub-values.yaml \
  --values my-yamls/overlay-shared.yaml \
  --wait --timeout=10m

Stop and restart your server from the hub's control panel — a mount only appears in a pod that starts with it — and /home/shared is there in the file browser.

Now prove it is actually shared. One browser session is one logged-in user, so being two people at once needs a second session:

  1. As admin, open a terminal in your hub (File ▸ New ▸ Terminal) and drop a file in:

``bash echo "hello from admin" > /home/shared/hello.txt ``

  1. Open a private/incognito window on the same https://jhub-$NRP_USER.nrp-nautilus.io, and log in as admin2 with the same password. Spawn a server.
  1. admin2 gets its own empty home directory — but /home/shared/hello.txt is right there, and editing it from either account shows up in the other.

That is the classroom pattern in miniature: private homes, one common folder. Instructors drop datasets and notebooks in once; every student sees them instantly. Mount it read-only for students in production.

5.4 Real authentication

For production, replace the Dummy authenticator with institutional login: campus credentials, no passwords to distribute, and a list of who is allowed in that you control. yamls/cilogon-jupyterhub-config.yaml in the workspace is a working CILogonOAuthenticator config; what changes between a departmental hub and a locked-down course hub is only which allow rule you write.

This is the one change on this page you cannot try right now — it needs a client_id and client_secret that CILogon issues by hand, and that wait is the reason today's hub uses the Dummy authenticator at all. The patterns below are what you will write once those arrive.

Look your entity ID up — do not guess it

The key under allowed_idps is your identity provider's entity ID, and the format varies a lot from campus to campus. Real ones:

text
https://shib.unl.edu/idp/shibboleth            # Nebraska
https://idpz.utorauth.utoronto.ca/shibboleth   # Toronto — not "shib.utoronto.ca"
http://google.com/accounts/o8/id               # Google — http, and no hostname you would guess
https://github.com/login/oauth/authorize       # GitHub

There is no pattern to derive yours from — look it up in the CILogon IdP list and paste it exactly. A key that does not match an entity ID CILogon knows simply never matches a login, and nobody gets in.

Everyone at one campus

Name your institution's identity provider and let any address on its domain in:

YAML
hub:
  config:
    JupyterHub:
      authenticator_class: cilogon
    CILogonOAuthenticator:
      client_id: <OIDC client>
      client_secret: <OIDC secret>
      oauth_callback_url: https://<your-name>.nrp-nautilus.io/hub/oauth_callback
      admin_users:
      - you@your-institution.edu
      # IDP Lookup: https://cilogon.org/idplist/
      allowed_idps:
        https://shib.your-institution.edu/idp/shibboleth:
          allowed_domains:
          - your-institution.edu
          username_derivation:
            username_claim: email

Good for a lab or departmental hub. allowed_domains takes shell-style wildcards, so "*.your-institution.edu" picks up cs.your-institution.edu and friends.

A class roster

Drop allowed_domains and name the people instead — the enrollment list is the config. Campus login still gates the door; the roster decides who gets through it:

YAML
    CILogonOAuthenticator:
      # …client_id, client_secret, oauth_callback_url as above…
      # IDP Lookup: https://cilogon.org/idplist/
      allowed_idps:
        https://shib.your-institution.edu/idp/shibboleth:
          username_derivation:
            username_claim: email
      admin_users:
      - you@your-institution.edu
      - your-ta@your-institution.edu
      allowed_users:
      - student1@your-institution.edu
      - student2@your-institution.edu
      - student3@your-institution.edu

Students who drop the course lose access the next time you helm upgrade. Admins are allowed implicitly — you do not repeat them in allowed_users.

Both at once

Allow rules are additive: a user gets in if any rule admits them. So a course open to your campus plus a handful of outside collaborators is both rules together —

YAML
      # IDP Lookup: https://cilogon.org/idplist/
      allowed_idps:
        https://shib.your-institution.edu/idp/shibboleth:
          allowed_domains:
          - your-institution.edu          # anyone on campus…
          username_derivation:
            username_claim: email
      allowed_users:
      - collaborator@other-university.edu # …plus these specific people
      blocked_users:
      - former-student@your-institution.edu

blocked_users wins over every allow rule, which is how you remove one person without rewriting the roster.

Notice

Usernames are whatever claim you pick. username_claim: email makes the JupyterHub username jdoe@your-institution.edu, and that is the string your allowed_users entries and per-user PVC names must match. Adding action: strip_idp_domain with domain: your-institution.edu under username_derivation gives you a plain jdoe instead.

allowed_idps was renamed idps in oauthenticator 17.4. NRP's example file — and the snippets above, which follow it — still use allowed_idps; it is accepted as an alias and logs a deprecation warning, so prefer idps on a hub you are building fresh.

Putting it back

Drop the overlay flags and your hub returns to the base file:

Bash
helm upgrade $NRP_RELEASE jupyterhub/jupyterhub \
  --namespace $NRP_NAMESPACE \
  --values my-yamls/jhub-values.yaml \
  --wait --timeout=10m

6. Cleanup

If this was a trial run, uninstall your Helm release so the cluster is left clean:

Bash
helm uninstall $NRP_RELEASE -n $NRP_NAMESPACE

User PVCs are kept by default; delete them only if you are sure:

Bash
kubectl delete pvc -n $NRP_NAMESPACE -l app=jupyterhub,component=singleuser-storage

helm uninstall does not touch the shared volume either, because nothing in the release owns it — if you created it in 5.3, it is still there:

Bash
kubectl delete pvc jupyterhub-shared-volume -n $NRP_NAMESPACE --ignore-not-found

If this is a real course hub, leave it running — the cull settings close idle student sessions automatically.

7. Deploying your own hub at NRP

Today's hub was built to fit a workshop: Dummy auth, a throwaway namespace, a chart version left floating. A hub you actually run for a course differs in a handful of specific places, and NRP documents the whole path:

📘 Deploy JupyterHub · the full example values file

The minimum that has to change

1. Register an OAuth client with CILogon at cilogon.org/oauth2/register. Pick your hostname first — it is baked into the callback URL:

FieldValue
Callback URLhttps://<your-name>.nrp-nautilus.io/hub/oauth_callback
Client typeConfidential
Scopesorg.cilogon.userinfo,openid,profile,email
Refresh tokensNo

They review registrations by hand and email you a client ID and secret — days, sometimes more than a week. Start this before anything else.

2. Set six fields in your values file. yamls/cilogon-jupyterhub-config.yaml in your workspace is a working copy of NRP's example; these are the parts only you can fill in:

YAML
hub:
  config:
    CILogonOAuthenticator:
      client_id: <OIDC client>                  # from CILogon
      client_secret: <OIDC secret>              # from CILogon
      oauth_callback_url: https://<your-name>.nrp-nautilus.io/hub/oauth_callback
      admin_users:
      - you@your-institution.edu
    JupyterHub:
      authenticator_class: cilogon              # not dummy
proxy:
  secretToken: '<openssl rand -hex 32>'
httpRoute:
  enabled: true
  hostnames:
    - <your-name>.nrp-nautilus.io
  gateway:
    name: ingress
    namespace: haproxy

httpRoute is the Gateway API route NRP uses now; the ingress block you deployed with today still works but is marked for deprecation in NRP's own example, so new hubs should prefer httpRoute.

Do not leave the door open

Our workshop hub has allowed_users: set() — an empty allowlist that lets anyone sign in. That is fine for a namespace that lives 40 minutes; on a public hostname with real login it is how your namespace gets locked. A real hub narrows access with allowed_idps (your institution's identity provider, from the CILogon IdP list) or an explicit allowed_users list — which, for a course, is your enrollment roster.

cull is not optional either: deploying without it is against cluster policy, and timeout may not exceed 21600 (6 hours).

3. Install it the same way you did today — same chart, your values file, a namespace you are admin of:

Bash
helm upgrade --cleanup-on-fail --install jhub jupyterhub/jupyterhub \
  --namespace <your-namespace> \
  --values config.yaml

Pin --version once you are in production so a chart release never changes the hub underneath your students mid-semester — the same reasoning as pinning image tags in section 8.

Everything else on this page — profiles, resource limits, shared storage, culling, custom images — is identical whether the hub is yours or a workshop's.

8. Building custom course images in NRP GitLab

This is the take-home section — if the workshop ran out of time, it is the part to read afterwards. Nothing earlier on this page depends on it.

The stock Jupyter images only go so far — real courses need their own package stacks. NRP GitLab (gitlab.nrp-nautilus.io) builds images for you in CI and hosts them in its container registry.

The workflow:

  1. Create a project on NRP GitLab and add a Dockerfile — typically FROM quay.io/jupyter/scipy-notebook:… plus your pip/conda installs.
  2. Add .gitlab-ci.yml — a single Kaniko job builds and pushes on every commit:
YAML
image: ghcr.io/osscontainertools/kaniko:debug

stages:
- build-and-push

build-and-push-job:
  stage: build-and-push
  variables:
    GODEBUG: "http2client=0"
  script:
  - echo "{\"auths\":{\"$CI_REGISTRY\":{\"username\":\"$CI_REGISTRY_USER\",\"password\":\"$CI_REGISTRY_PASSWORD\"}}}" > /kaniko/.docker/config.json
  - /kaniko/executor --cache=true --push-retry=10 --context $CI_PROJECT_DIR --dockerfile $CI_PROJECT_DIR/Dockerfile --destination $CI_REGISTRY_IMAGE:$CI_COMMIT_SHORT_SHA --destination $CI_REGISTRY_IMAGE:latest
  1. Use the image anywhere on the cluster — in a pod spec, or as a hub profile:
YAML
  - display_name: My Course Image
    kubespawner_override:
      image_spec: gitlab-registry.nrp-nautilus.io/<group>/<project>:latest

Best practices for a course: tag with commit SHAs (not just latest) so the environment never changes under your students mid-semester; use --cache=true for fast rebuilds; keep credentials in CI variables, never in the Dockerfile.

🧠 Quick check
What role does the Helm values file play in your deployment?
Your course hub goes to production. What happens to the Dummy authenticator?
Why tag course images with commit SHAs instead of only latest?
You edited jhub-values.yaml to add an image profile. How do the changes reach your running hub?
Every student's server shows the same /home/shared folder. What makes that work?

Where to go next

Questions?

Open Q&A — your own course, GPU and allocation policy, Qualcomm access, migrating an existing class onto NRP. Ask away.

Key Points
  • The values file is your deployment — version-control it and you can rebuild anywhere.
  • helm upgrade re-renders the chart with new values; it is not kubectl apply.
  • One RWX volume mounted into every server is how a class shares datasets.
  • Pin course images to a commit SHA so the environment never shifts mid-semester.
